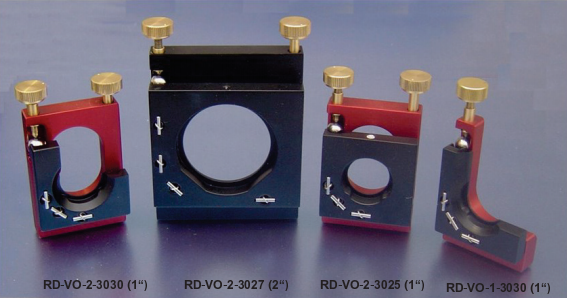

RD-VO

These mirror holders can be used from top, allow a smooth and very precise adjustment without the danger to reach into the beam path. The translation of the rotary motion through a ball facilitate a resolution of 0.125 mm per turn.

Because of their robust contruction the mirror holder can be built into resonators without any problems.

For all available versions, please refer to our PDF Document.

RD-VODownload PDF

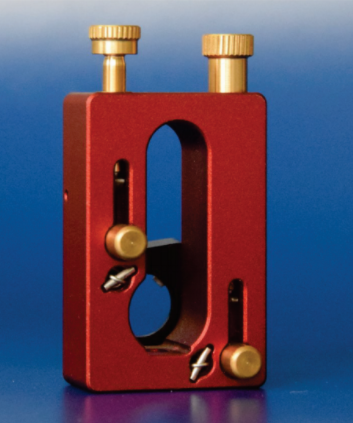

MNI-VO

  • For 1/2” optical devices
  • Ideal for fitting into small spaces
  • Hysteresis free
  • 170 TPI fine thread screws
  • M4.5 adjusters
  • Mounting hole M6
  • 2 strong springs
  • Available with 1/2” closed front plate

MNI-VO
 MNI-VO

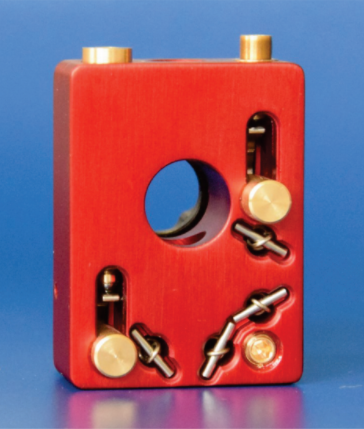

MNI-HS-VO

  • For 1/2” optical devices
  • Ideal for fitting into small spaces
  • Hysteresis free
  • 170 TPI fine thread screws
  • M4.5 adjusters
  • Mounting hole M6
  • 4 strong springs
  • Available with 1/2” closed front plate

MNI-HS-VODownload PDF

MDI-HS-VO-R/L

  • For 1” optical devices
  • Left- and right-handed
  • Ideal for fitting into small spaces
  • Hysteresis free
  • 170 TPI fine thread screws
  • M4.5 adjusters
  • Mounting hole M6
  • 4 strong springs
  • Available with all front plates of our MDI/MDI-HS Series

MDI-HS-VO-R/LDownload PDF

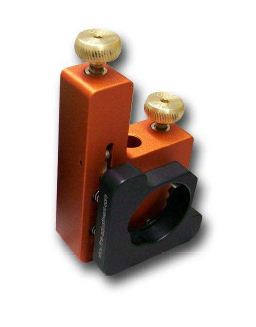

FineAdjustment Earth Used from Top Series

  • For 1" optical devices
  • Ideal for fitting into small spaces
  • Hysteresis free
  • 170 TPI fine tuning adjusters
  • M4.5 adjusters with hexagon socket
  • Mounting holes M6
  • 4 powerful springs for excellent performance
  • Body in anodised aluminium
FineAdjustment Earth from Top Used
 FineAdjustment Catalog

FineAdjustment Venus Used From Top Series

  • For 0.5" optical devices
  • Ideal for fitting into small spaces
  • Hysteresis free
  • 170 TPI fine tuning adjusters
  • M4.5 adjusters with hexagon socket
  • Mounting holes M4
  • Powerful springs for excellent performance
  • Body in anodised aluminium
FineAdjustment Venus from Top Used
Download PDF
