N-470 PiezoMike Linear Actuator

N-470

  • Holding force >100 N
  • Step size 20nm
  • Travel range 7.5 mm
  • Compact design
  • Feed force 22N
  • Lifetime >1.000.000.000 steps

Linear actuator with PIShift piezomotor

Linear screw-type actuator with PIShift piezo inertia drive for high-resolution and stable positioning. Open-loop operation.

PIShift piezomotors
Compact, cost-effective inertia drive (Stick-Slip). When at rest, the drive is self-locking and therefore requires no current and generates no heat. It holds the position with maximum force.

Alignment of mechanical and optical components
Stable alignment of optical paths. Long-term positioning stability: High stability in target position, reliable start-up even after longer downtimes. High holding force and resolution by combining piezo actuators with mechanicalthread translation. Optionally vacuum-compatible to 10-9 hPa.

For further technical details, please refer to our PDF Document.

PizeoMike Linear Actuator N-470
 PiezoMike Linear Actuators

Piezo controller

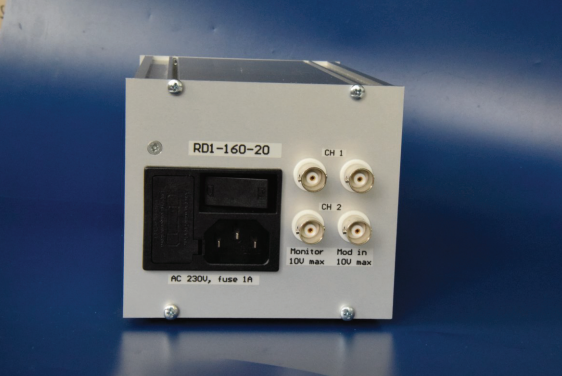

The power supply RD2-16020 was developed for two axes positioning of piezo-electrically controlled mirror mounts.

For further technical details, please refer to our PDF Document.

RD2-16020RD2-16020

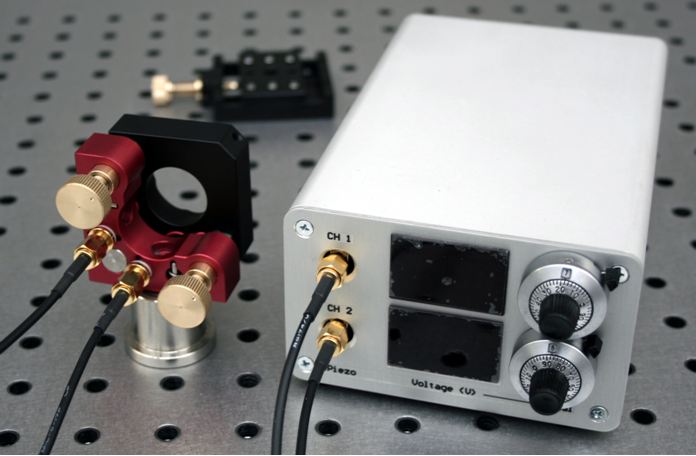

 MDI-H Piezo / Piezo Controller

MDI-H with Piezo Drive

The MDI-H with Piezo Drive is a mirror mount which is controlled by a piezo system with our own electronics. Besides a manual adjustment by 0.15mm / 0.25mm per turn, the systems can be adjusted electronically within a µm-range. The piezoelectric actuators are built into the mirror holder. Each of them have the following specifications:

The operation voltage range is -10 V ... +150 V, leading to maximum stroke of >20 µm (typically 23 µm).

For further technical details, please refer to our PDF Document

Many of our optomechanical components can be equipped with piezo drives. For detailed information please contact us.

Piezodrive with MDI-H

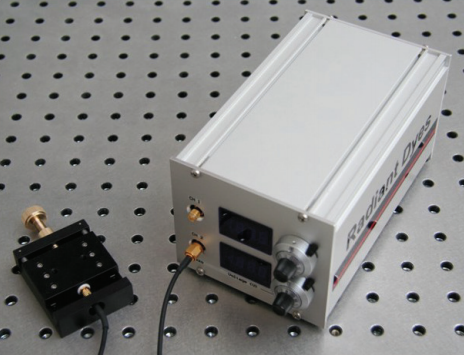

 MDI-H Piezo / Piezo Controller

Translation Stage with Piezo Drive

The MDI-H with Piezo Drive is a mirror mount which is controlled by a piezo system with our own electronics. Besides a manual adjustment by 0.15mm / 0.25mm per turn, the systems can be adjusted electronically within a µm-range. The piezoelectric actuators are built into the translation stage. Each of them have the following specifications:

The operation voltage range is -10 V ... +150 V, leading to maximum stroke of >20 µm (typically 23 µm).

For further technical details, please refer to our PDF Document.

Piezo MDI-H Translation StageDownload PDF

Translation Stage with Stepper Motor

RD Stepper motor drive 55   55mm travel range xy and xyz available
RD Stepper motor drive 130   130mm travel range
RD Stepper motor drive 180   180mm travel range

Specifications:

  • Preloaded lead screw
  • Min. incremental motion 0,1µm low cost version 0,3µm (High resolution on request)
  • Max. load 200N
  • Limit and reference switches
  • Control unit for three motors
  • low cost version: control unit for 16 motors


Download PDF

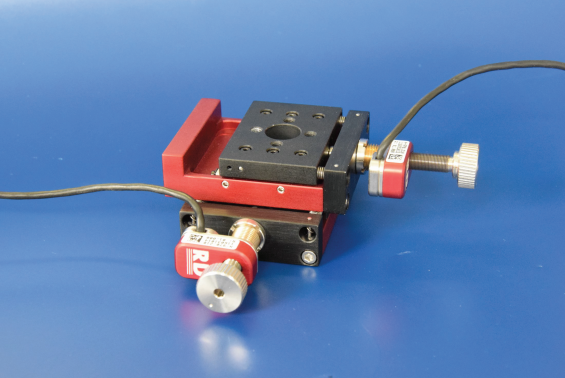

Translation stage with Piezo Drive

  • Can be delivered with Piezo Drive

Examples:

  • our RD-KRA-15-01 Piezo Drive with tolerances of an accuracy of +/- 1 hundreth mm over the whole sliding range
  • the 25mm translation of +/- 2 hundreth mm

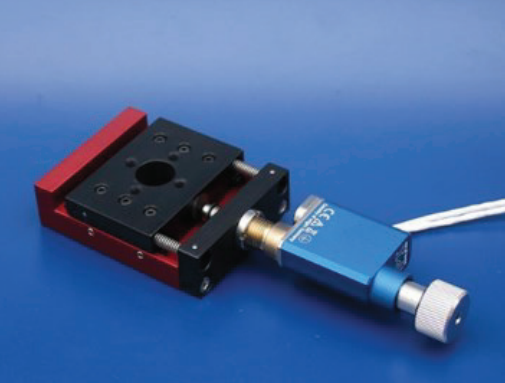

piezo translation stage
piezo translation stage
Download PDF

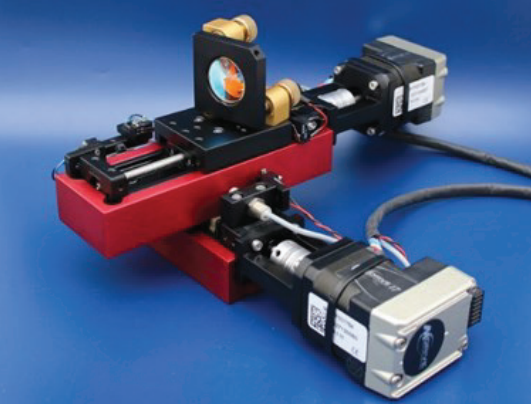

Standalone Translation stage with stepper motor

Our extremely precise laser contral as standalone unit as x, xy and xyz version with the different travel ranges between 50 and 180 mm.

These are our translation elements on the basis of a pre-stressed linear roller way, combined with a translation stage with linear roller way, free from play. The accuracy and reproducibility is of highest precision.

Specifications:

  • Min. incremental motion 0,1 µm
  • Max. 64.000 steps per turn
  • Max. speed: 16.000 steps per second
  • Max. load: 200N
  • Limit and reference switches

A special feature is that the stepper motor can be controlled directly over a PC as the control card is isntalled inside the stepper motor. We can also offer a complete control box.

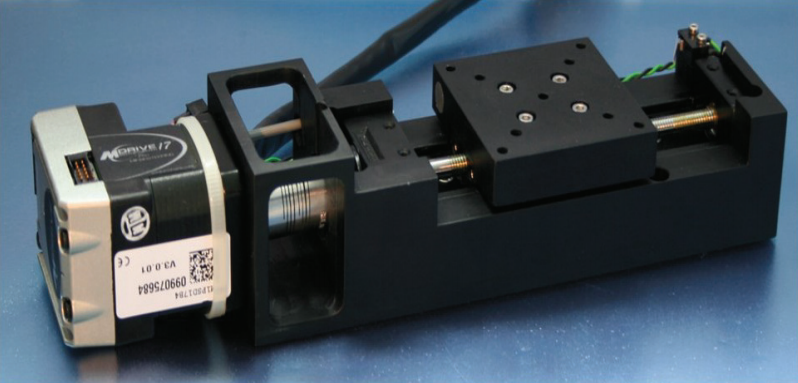

Stepper translation stage
Download PDF
