Translation Stages

Radiant Dyes offers high quality translation stages. With this kind of longitudinal guide we can offer a high precision guide system for high loading, with well fitted guide and extremely smooth operation.

with 15mm or 25mm adjustment line:

  • X
  • XY
  • XYZ

Download PDF

RD-NP-KRU-15

Made of aluminium with high precision "Schneeberger" crossed roller way guides.

With this kind of longitudinal guide we can offer a high precision guiding system with extremely low

height (13 mm). The use of cross roller way guides ensures a well fitted guide with a very smooth

operation. These translation stages are equipped with a fine thread screw (thread pitch 0.25mm). The dimensions of the drill holes are designed in that way that two stages are easily mounted to one XY unit. Using a special adapter it is possible to realise a XYZ-unit.

Translation stage with fine thread screws:

  • 0.25 mm per turn
  • 0.15 mm per turn

Translation stage with micrometer screws:

  • 0.5 mm per turn
  • 0.25 mm per turn

RD-KRU-15

Translation stage with crossed roller way guides 15 mm adjustment line

With this kind of longitudinal guide we can offer a high precision guide system for high loading with

well fitted guide and extremely smooth operation. The lateral guidance offers the possibility to build in a passage notch, e.g. for a laser beam.

With fine thread screws:

  • 0.25 mm per turn
  • 0.15 mm per turn

With micrometer screws:

  • 0.5 mm per turn
  • 0.25 mm per turn



RD-KRU-15-01-piezodrive

  • piezo drive 27/35μm

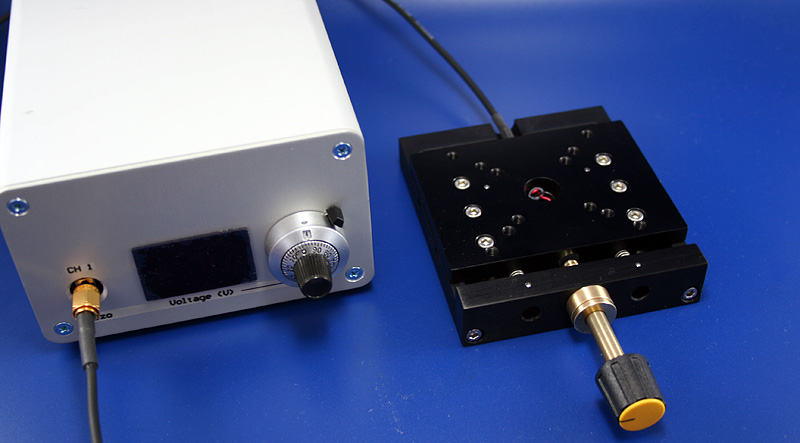

Translation Stage with Piezo Drive

RD-KRU-25

Translation stage with crossed roller way guides 25 mm adjustment line.

With fine thread screws:

  • 0.25 mm per turn
  • 0.15 mm per turn

With micrometer screws:

  • 0.5 mm per turn
  • 0.25 mm per turn

RD-KRU-25-01-piezodrive

  • piezo drive 27/35μm

RD-KUL-15

Translation stage with linear roller way guides 15 mm adjustment line

The linear roller way guides are commercial systems which we build in our sliding stages. We are in the position to offer inexpensive but high-quality systems, because of the simple assembly and the high precision. The linear roller way guides are delivered well fitted and with high rigidity. The sliding units are also available for custom-made units in different lengths. The adjustment of the sliding stages is carried out by fine thread or micrometer screws, stepper motor control on request.

Translation stage with fine thread screws:

  • 0.25 mm per turn
  • 0.15 mm per turn

Translation stage with micrometer screws:

  • 0.5 mm per turn
  • 0.25 mm per turn
RD-KUL

RD-KUL-25

Translation stage with linear roller way guides 25 mm adjustment line
