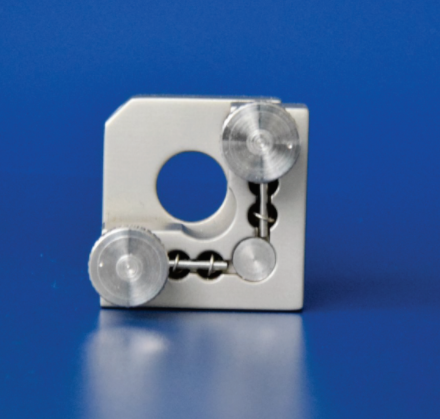

MNI-HSS

As special option for ultimate stability we offer the MNI-HSS. The back plate, the front plate and the screws are made of stainless steel.

This mirror mount guarantees high thermal and highest dimensional stability.

  • Thick back plate and thick front of special stainless steel
  • 4 strong springs
  • Equipped with two stainless steel or brass fine thread screws with 150 µm/turn (170 TPI) thread
  • M4 thread (standard)
  • #8-32 thread available on request

MNI-HSSDownload PDF

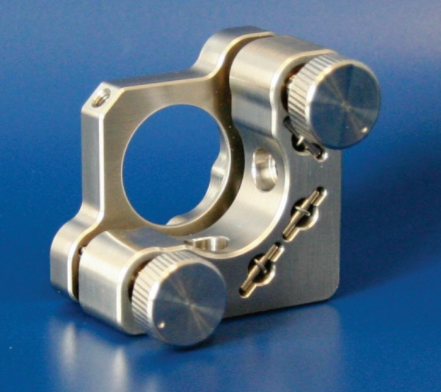

MDI-HSS

As special option for ultimate stability we offer the MDI-HSS. The back plate, the front plate and the screws are made of stainless steel.

This mirror mount guarantees high thermal and highest dimensional stability.

  • Thick back plate and thick front of special stainless steel
  • 4 strong springs
  • Equipped with two stainless steel or brass fine thread screws with 150 µm/turn (170 TPI) or 250 µm/turn (100 TPI) thread
  • M6 thread with M4 inner lowering (standard)
  • M4 thread available on request
  • #8-32 or #1/4-20 thread available on request

MDI-HSSDownload PDF

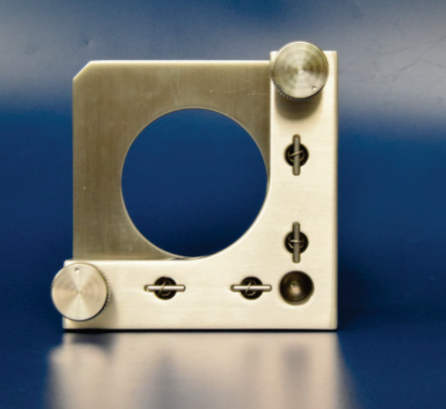

MXI-HSS

As special option for ultimate stability we offer the MXI-HSS. The back plate, the front plate and the screws are made of stainless steel.

This mirror mount guarantees high thermal and highest dimensional stability.

  • Thick back plate and thick front of special stainless steel
  • 4 strong springs
  • Equipped with two stainless steel or brass fine thread screws with 150 µm/turn (170 TPI) or 250 µm/turn (100 TPI) thread
  • M6 thread with M4 inner lowering (standard)
  • M4 thread available on request
  • #8-32 or #1/4-20 thread available on request

MXI-HSSDownload PDF

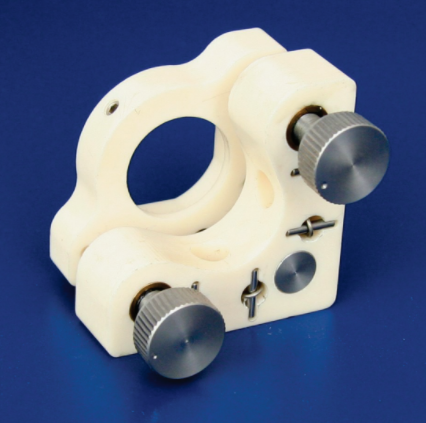

MDI-HC

For ultimate thermal stability we offer the MDI-HC. The back plate and the front plate are made of ceramic. This mirror mount is available with brass or stainless steel screws.

  • Thick back plate and thick front plate of ceramic
  • 4 strong springs
  • Equippped with two brass or stainless steel fine thread screws with 150 µm/turn (170 TPI) or 250 µm/turn (100 TPI) thread
  • Inner lowering for M4 screws

MDI-HCDownload PDF

FineAdjustment Mercury

The Mercury series offers an high quality mirror mount in a compact format for 0.5" and 1" mirrors.
  • 170 TPI fine tuning adjusters
  • M4.5/M8 adjusters with hexagon socket
  • Mounting holes M4 counter bore
  • Powerful springs for excellent performance
  • Body and front plate in stainless steel
  • Sandblasted surface treatment to prevent laser reflections
FineAdjustment MercuryDownload PDF
