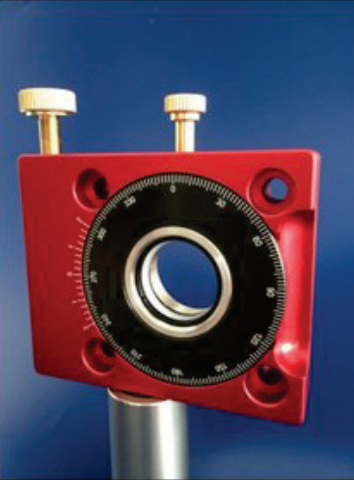

RD-RMP-1”

  • Precise roation mount with 360° laser engraved scale
  • Finest adjustment 20°
  • Resolution < 0.003°
  • Also available with PiezoMike
RD-RMP-1"Download PDF

RD-RM-1”-M

  • Precise motorized rotation mount 90° / 180° optional, for 1” optics with SM1-thread
  • Resolution 90° or 180° ±1%
  • Electronic & Software
RD-RM-1"-MDownload PDF

Rotational mirror mount parameters

Servo motor pulse length for 0°   980 µs
Servo motor pulse length for 180°   500 µs
Interpolation in range 0° ... 180°   linear ±1%
Recommended minimum speed (interpolation time)   200 time steps
Measured absolute precision in range 0° ...  180°   ±1% (unidirectional)
Measured unidirectional repeatability in range 0° ... 180°
Postitiong resolution in range 0° ... 180°   0.38° / µs
Start-up position at power on   vertical
Hysteresis   1.5°

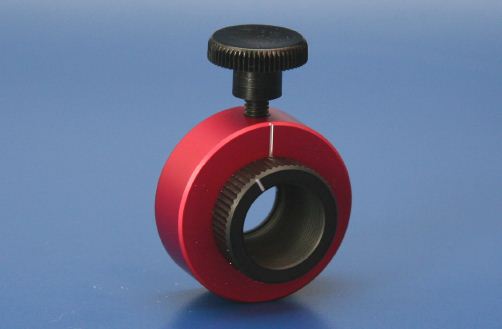

RD-RM-S-0,5”

  • With plastic screw
  • Small dimensions
  • Integrated notch for safe fixing
RD-RM-S-05
Download PDF

RD-RM-1” / -0,5”

  • With plastic screw
  • Integrated notch for safe fixing
RD-RM-1-05
Download PDF

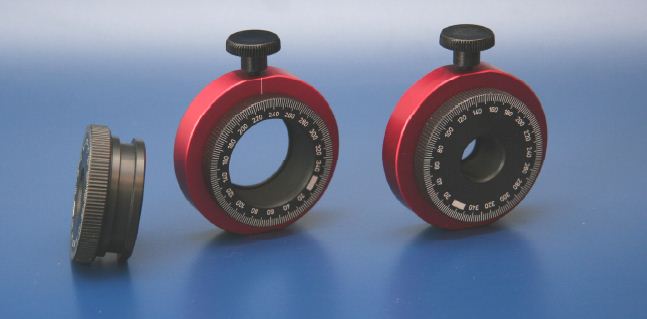

RD-RM-SK-1” / -0,5”

  • With plastic screw
  • Integrated notch for safe fixing
  • With 360° laser-engraved scale
RD-RM-SK-1-05
Download PDF

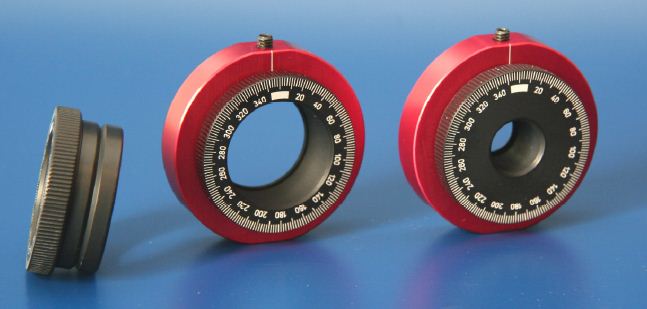

RD-RMM-SK-1 / -0,5”

  • With grub screw including a spring mounted ball for precise adjusting
  • Integrated notch for safe fixing
  • With 360° laser-engraved scale
  • Optics are fixed by a retaining ring
RD-RMM-SK-1-05
RD-RMM-SCREW
Download PDF

Read more: RD-RMM-SK-1 / -0,5”

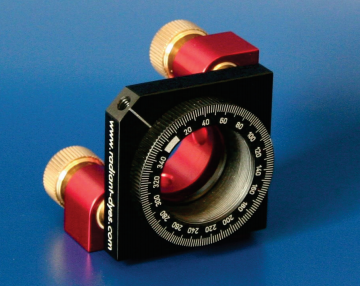

Rotation Mounts for Mirror Mounts

  • Mirror Mounts equipped with a Rotation Mount
  • with and without scale
  • with grub screw including a spring mounted ball for precise adjusting

Available for:

  • MDI
  • MDI-HS
  • RD2
  • RD2-HS
  • RD-VO

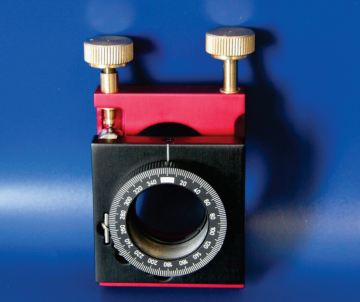

RM MM 2
Download PDF

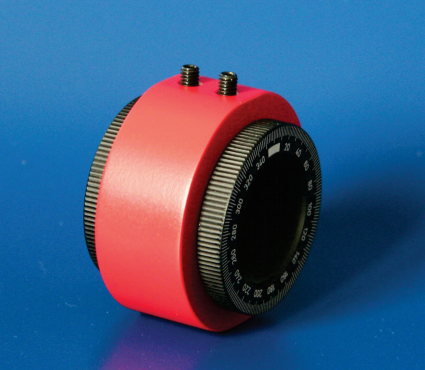

RD-RMM-SK-DRM-1”

  • Double rotation mount
  • with grub screw including a spring mounted ball for precise adjusting
  • with scale
  • optics are fixed by a retaining ring
RD-RMM-SK-DRM-1"Download PDF

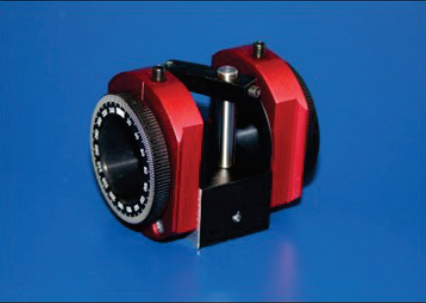

RD-RM-1”-D-2

  • Double Rotation Mounts for beam splitter cube
  • Precise rotation mount with 360° laser
  • engraved scale
RD-RM-1"-D-2Download PDF

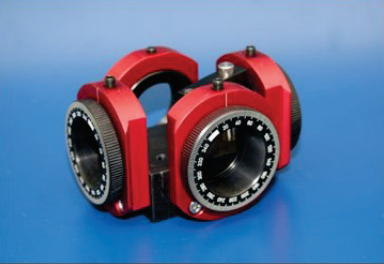

RD-RM-1”-Q-4

  • Quad Rotation Mount for beam splitter cube
  • Precise Rotation Mount with 360° laser engraved scale
RD_RM-1"-Q-4Download PDF

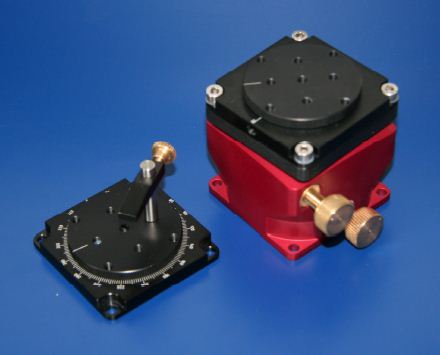

RD-RM-PTT / RD-RM-PTT-SK

  • Rotation Mount for Prism Turn Tables
  • Avaible with or without scale
  • One clamping arm included
RD-RM-PTT
Download PDF

RD-RM-OT/ RD-RM-OT-SK

  • Rotation Mounts for Optical Tables
  • Compatible to optical tables
  • with 25 mm x 25 mm raster
  • Hole spacing 50 mm x 50 mm
  • Available with and without scale
  • One clamping arm included
RD-RM-OT
Download PDF
