Flip Mounts Motorized RD-KLS-1” & RD-KLS-2”

Both Flip Mounts (1” and 2”) are also available as motorized version.

RD-KLS-1”-M(otorized)
RD-KLS-2”-M(otorized)

Option: Motor left or right handed



Flip Mount Controller

Position control is realized by Atmel RISC processor ATmega8 and standard servomechanism (servo) used in automation. RS-232C interface is used to control position and speed of the servo, connected to a mirror mount. Alternatively, the position can be controlled manually by switch. All parameters are stored in EEPROM memory and can be controlled by the user. LabVIEW sample drive is included. Depending on HW/SW versions concurrent control of one or two servos is possible.



RD-KLS-M
RD-KLS-M Controller
RD-KLS-M Controller


Download PDF

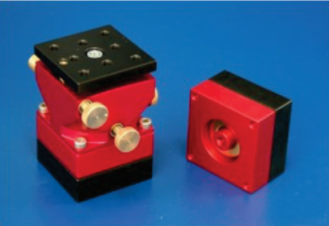

Magnet Plates for Prism Turn Tables

Repeatable, demountable option for Prism Turn Tables with magnets.

RD-MP-PDT-S for RD-PDT-S
RD-MP-PDT-B
for RD-PDT-B

RD-MP-PDTDownload PDF
