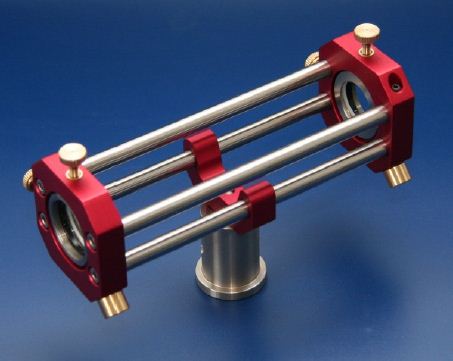

Beam Guide System - RD-BGS

  • Based on our variable Lens Mounts RD-VL
  • Stable Beam Guide System with a rod diameter of 8 mm
Beam Guide System
Download PDF

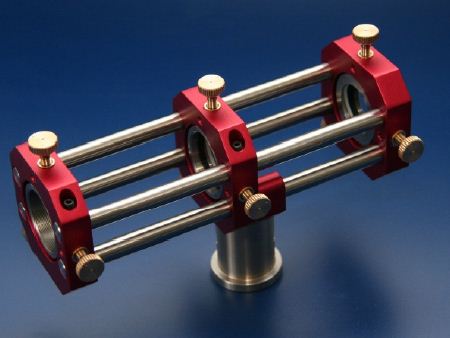

Spatial Filter RD-BGS-SF

  • For 1 inch or ½ inch
RD-BGS-SF
Download PDF

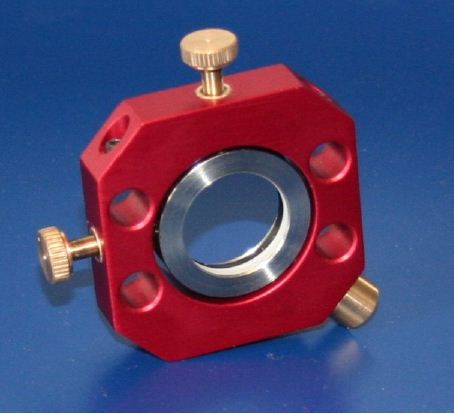

Variable Lens Mounts RD-BGS-VL

  • For 1 inch or ½ inch
RD-BGS-VL
Download PDF

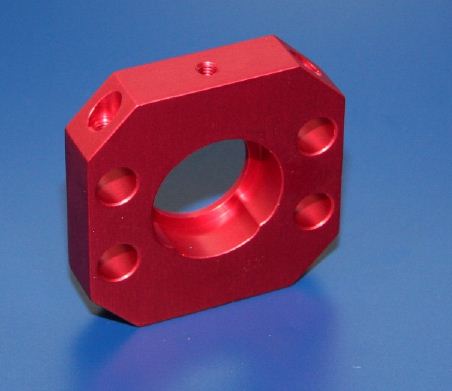

Fixed Plate RD-BGS-FP

  • For Lenses, Pinholes, Optical Diaphragms etc.
  • For 1 inch or ½ inch
RD-BGS-FP
Download PDF

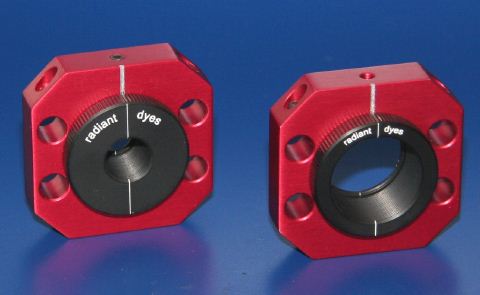

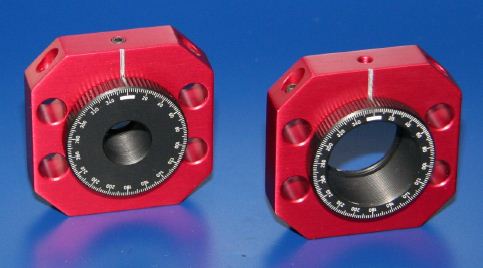

Rotation Mount RD-BGS-RM

  • For 1 inch or ½ inch
  • Two versions avaible: with or without scale
RD-BGS-RM ScaleRD-BGS-RM
Download PDF

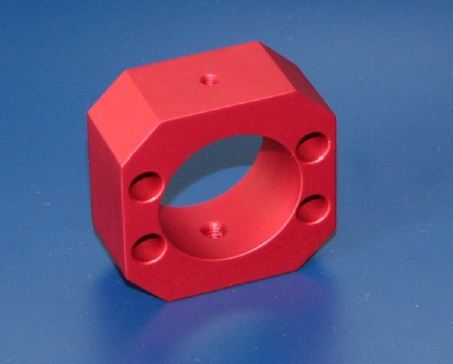

Laser Holder RD-BGS-LH

  • For e.g. HeNe-Laser
  • Diameter 35 mm
RD-BGS-LH
Download PDF

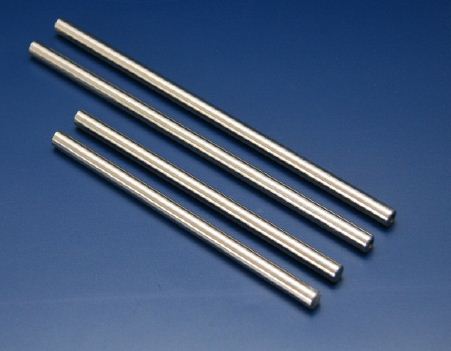

Rods RD-BGS-R

  • Diameter 8 mm
  • lengths:
    50 mm - 100 mm
    150 mm - 200 mm
    250 mm - 300 mm
  • Other lengths on request
RD-BGS-R
Download PDF

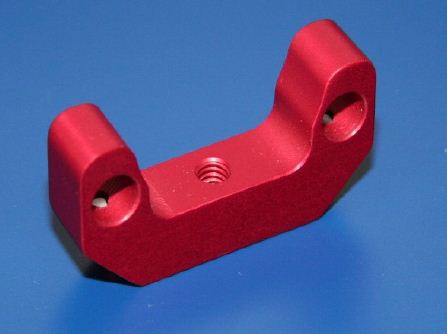

Rod Bases Small RD-BGS-BS

  • M4 Thread

or

  • M6 Threads with Counterbore for M4
RD-BGS-BS
Download PDF

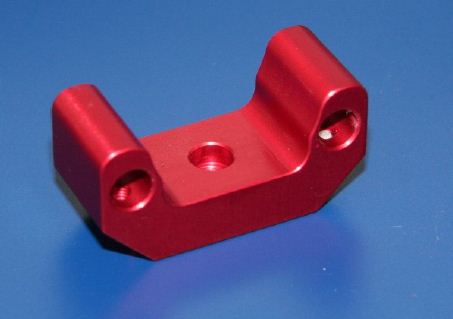

Rod Base Big RD-BGS-BB

  • M4 Thread

or

  • M6 Threads with Counterbore for M4
RD-BGS-BB
Download PDF

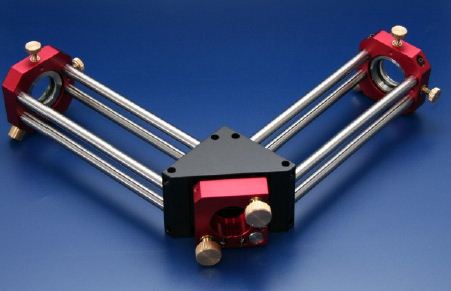

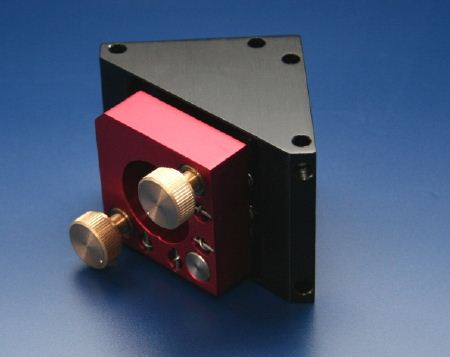

90° Mount RD-BGS-90°M

















Example of use:

RD-BGS-90
Download PDF

RD-BGS-90-Example

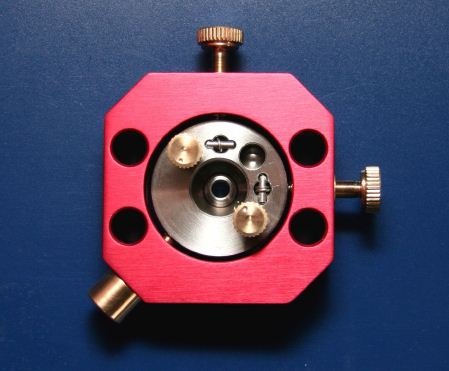

Fiber Coupler RD-BGS-FC

  • Adapter for SMA and FC/PC
RD-BGS-FC
Download PDF

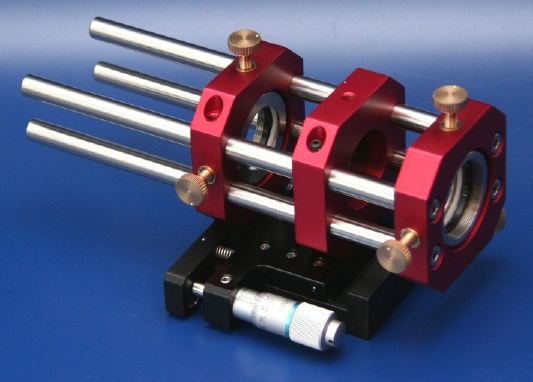

Translation Stage RD-BGS-TS

  • Integrated Translation Stage for precise adjustment
  • Adjustment line 30 mm
RD-BGS-TS
Download PDF
